iScale i-23 Bluetooth Platform Scale | 200kg× 20g | MS Pan size 400x400mm | Front & Back Red Display | Free Android/Pc App Billing | For Commercial & Industrial Use

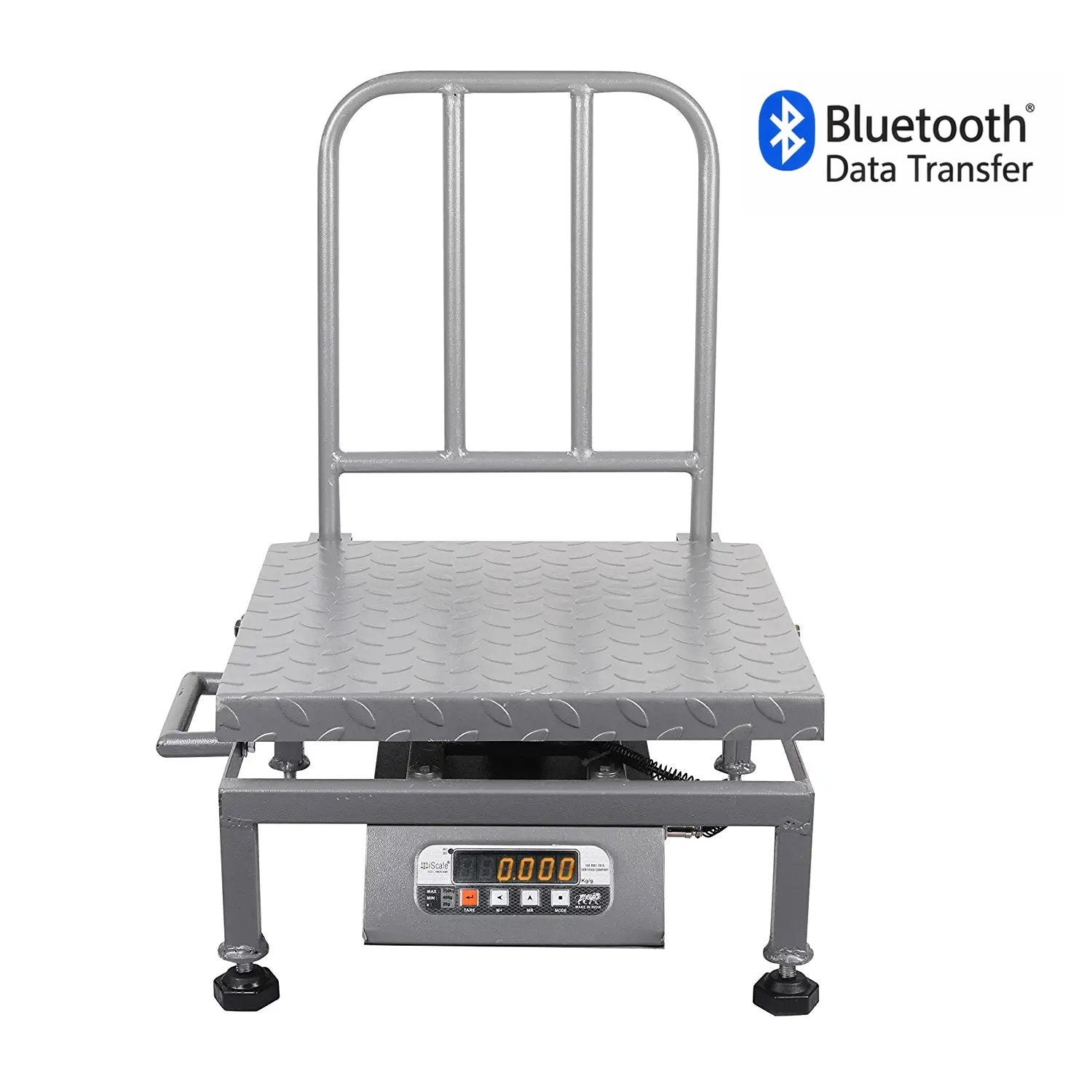

Bluetooth Connectivity & App Features

• Live weight display on Android smartphones and Windows PCs using lifetime free iScale POS app
• Completely offline operation; no internet or cloud dependency
• Stable wireless Bluetooth connection; no cables required

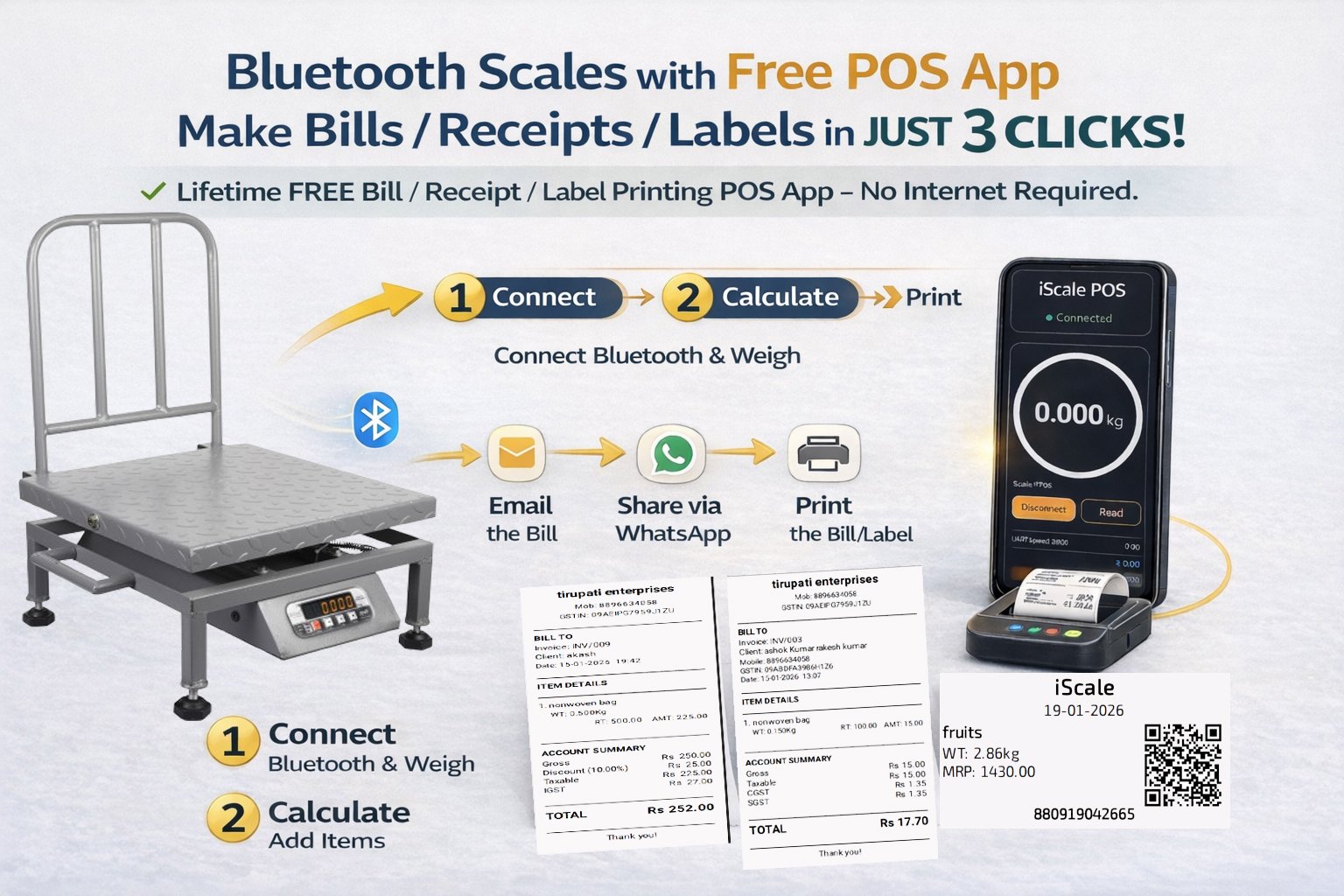

Billing, Receipt & Label Printing

• Create receipts, invoices and MRP labels in 10–20 seconds with a simple 3-step flow
• Supports QR code printing containing item name, weight, price, batch number and unique code

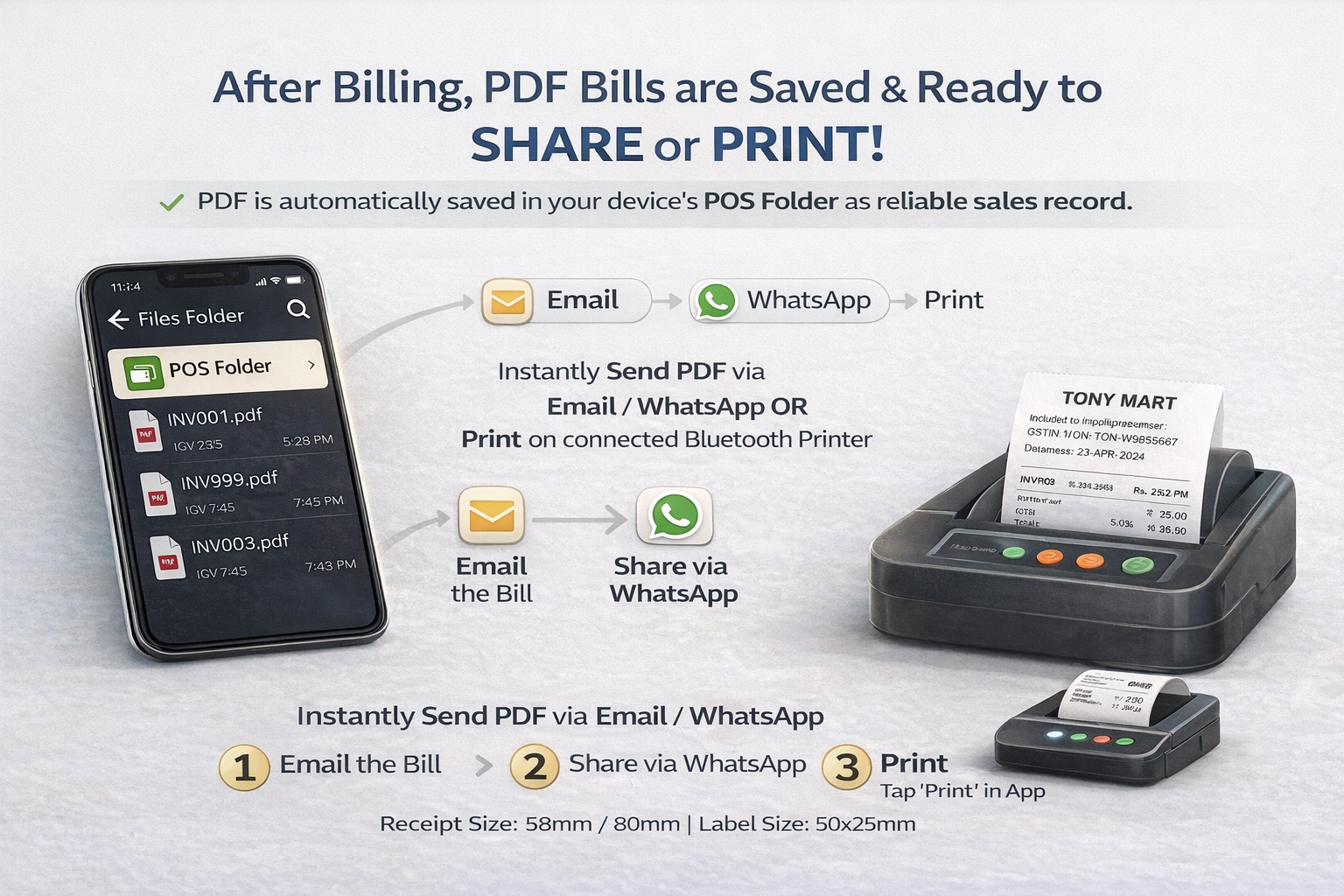

• PDF saving and direct wireless printing via Bluetooth thermal printer (printer not included)

Software Integration (Business & Industrial Use)

• Ready for integration with ERP, inventory, POS, automation and custom industrial applications
• Suitable for factories, warehouses, labs and billing counters
• No proprietary lock-in; open protocol for fast deployment

Data Protocol & Developer Integration

• Communication type: Bluetooth Serial Communication (SPP – Serial Port Profile)
• Data transmission: Real-time weight data output over Bluetooth
• Baud rate: 2400 or 9600 bps
• Data bits: 8
• Stop bits: 1
• Parity: None
• Flow control: None
• Data format: Plain text ASCII
• Output behavior: Continuous or stabilized weight output (application dependent)
• Integration friendly for developers using Java, Python, .NET, C/C++, Node.js and similar platforms
• Easy parsing and ingestion into backend systems, databases and dashboards

Weighing Capacity & Accuracy

• Maximum capacity: 200 kg
• Accuracy / precision: 20 g
• Minimum weighing: 60 g
• Supplied with calibration / verification certificate

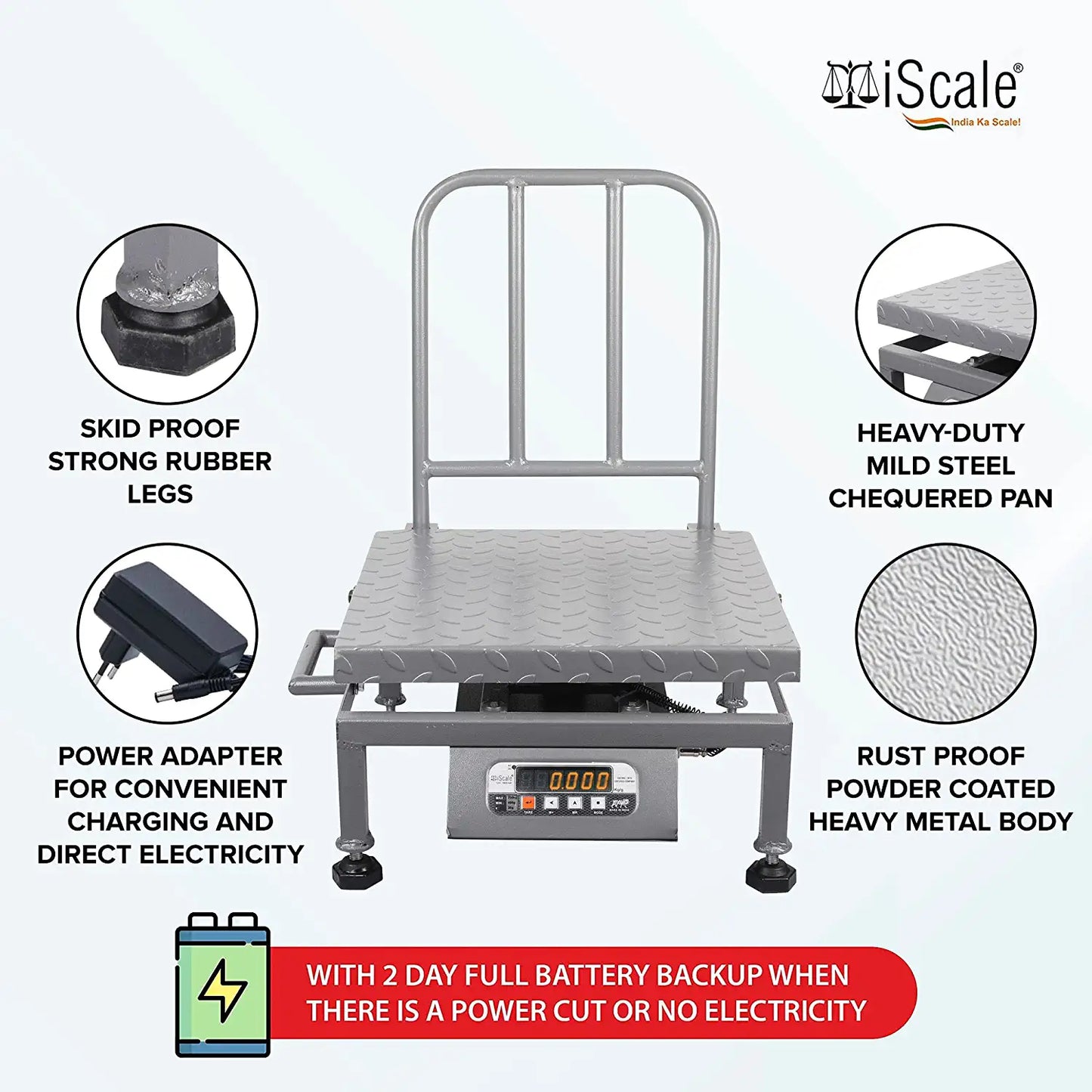

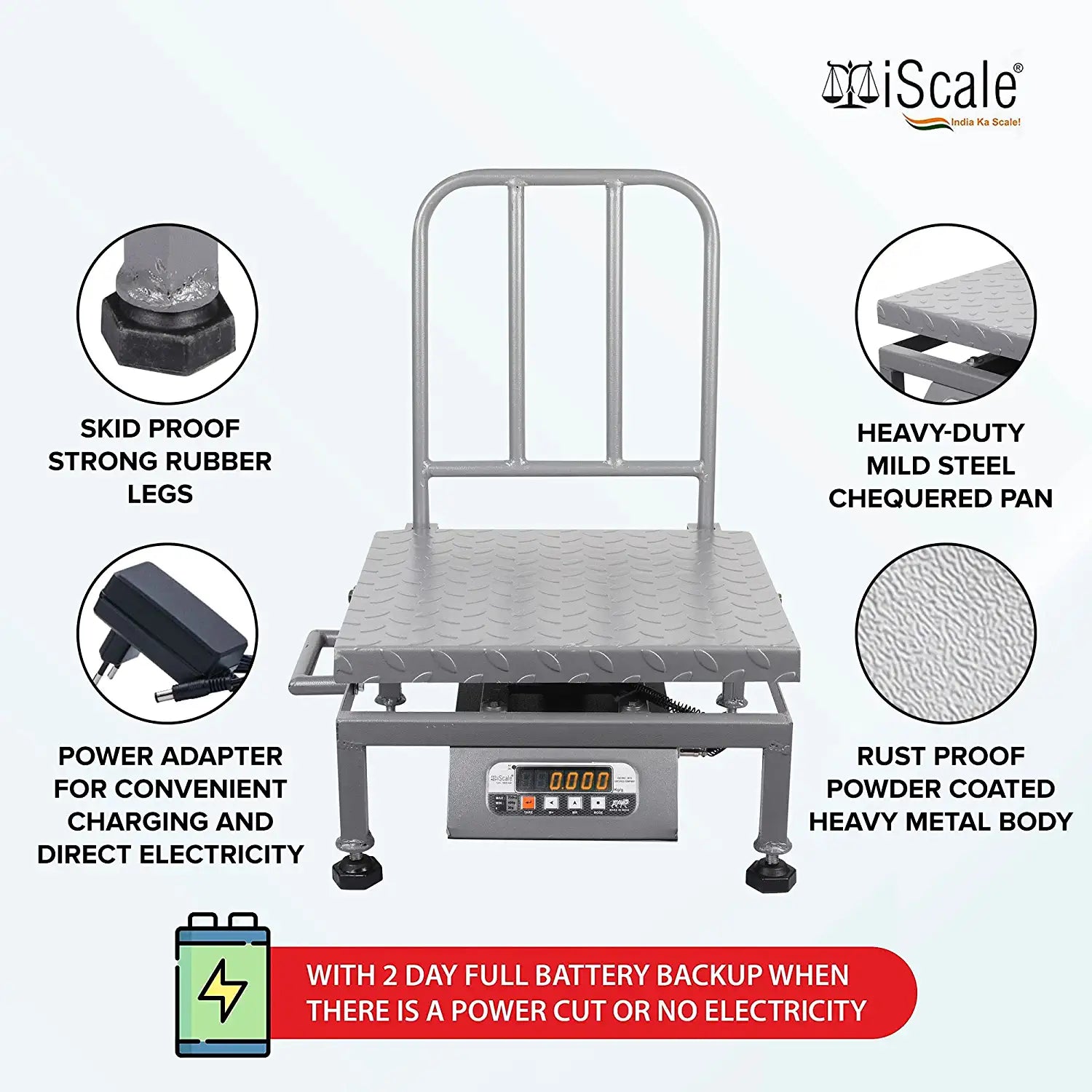

Platform & Build Quality

• Heavy-duty powder-coated mild steel platform

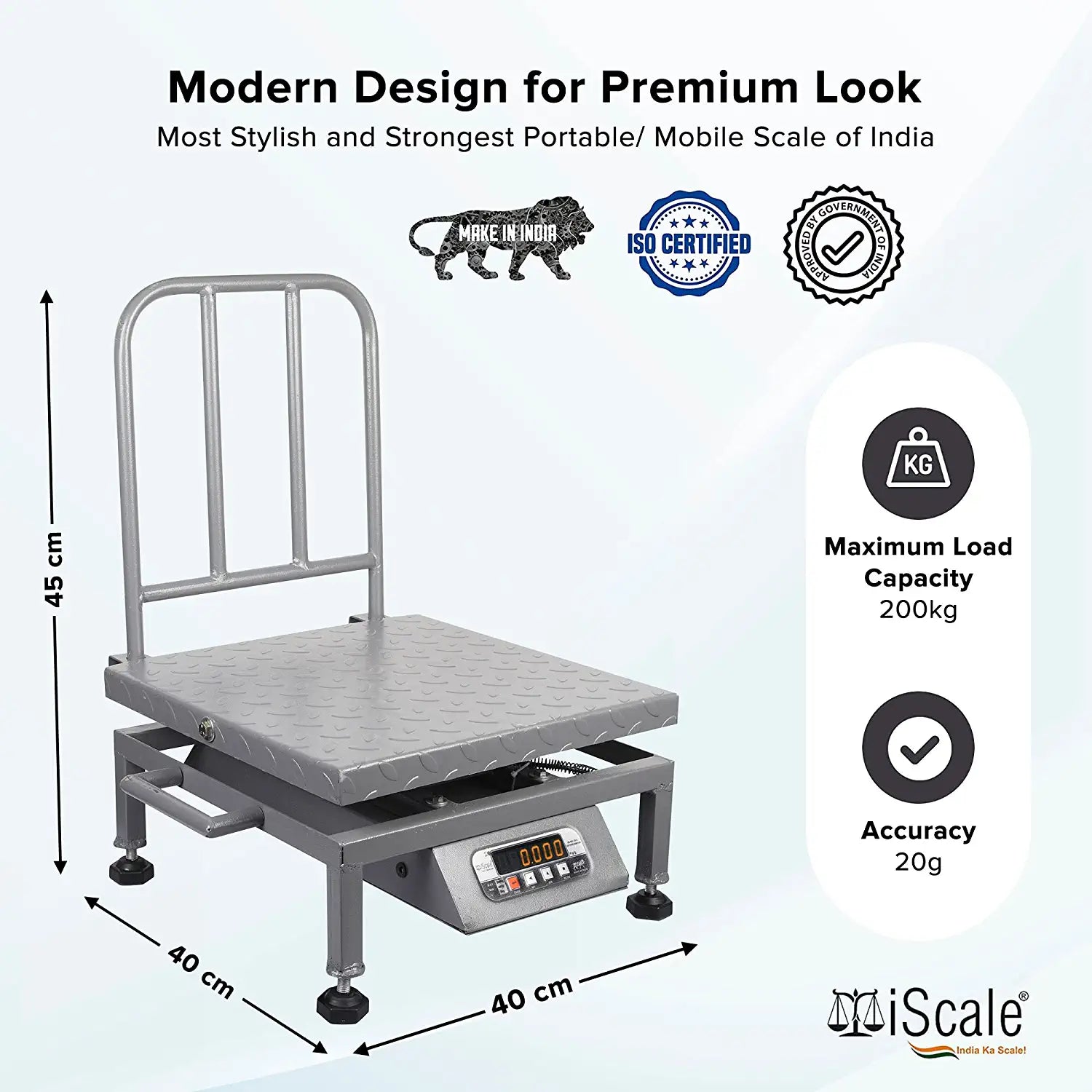

• Platform size: 400 × 400 mm
• Rust-proof heavy-duty metal body

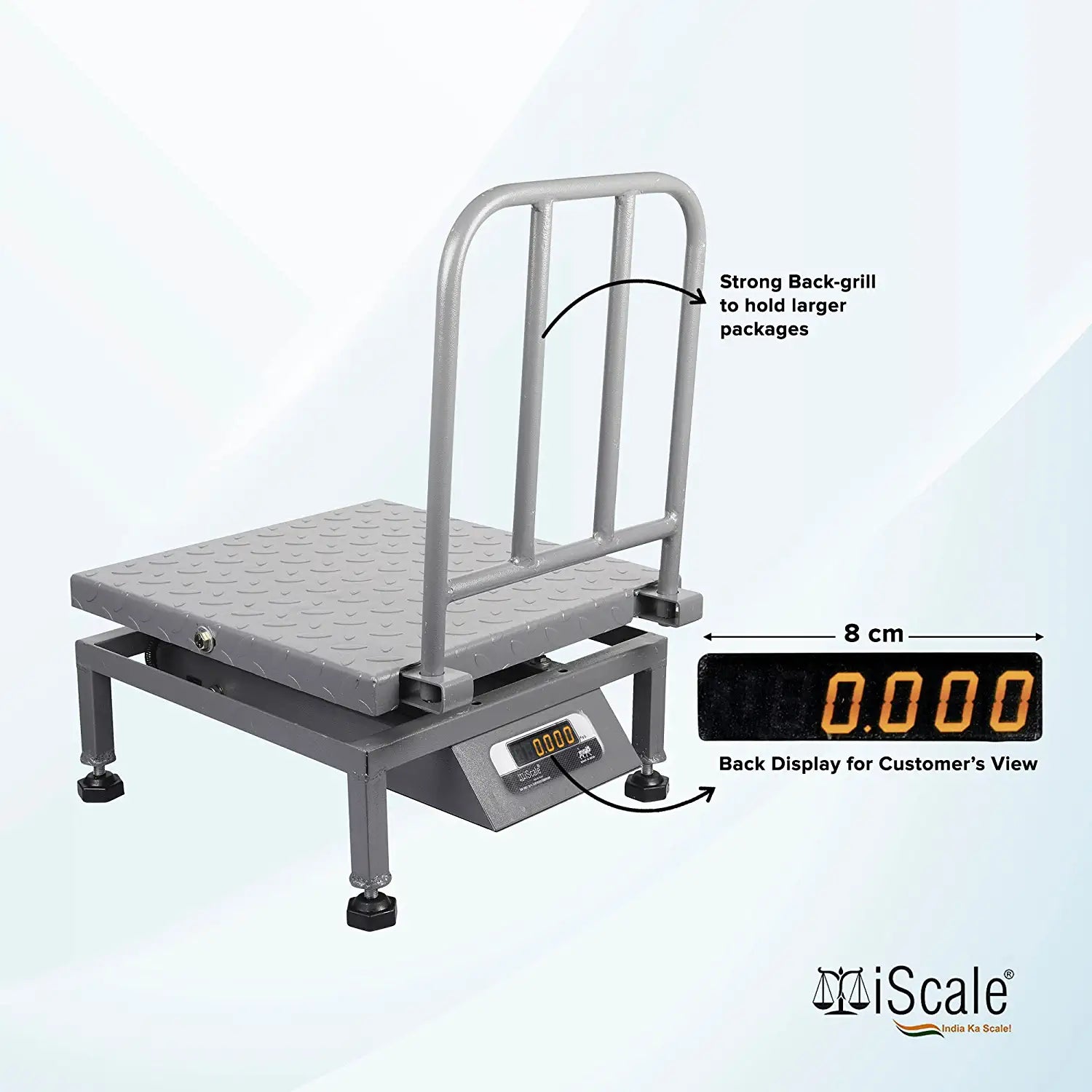

• Detachable back-grill for holding bulky packages securely

Portability & Power

• Detachable strong handle for easy mobility
• Operates on 220V AC power
• In-built rechargeable battery with up to 2 days backup
• Standby time up to 6 months when fully charged
• Automatic power saver mode during non-use

Display & Visibility

• Front and back ultra-bright red LED displays
• Clearly visible even in bright daylight

Support, Warranty & Usage

• 1-year warranty against manufacturing defects
• Pan-India service support in all major cities
• Installation and usage assistance via brand support number
• Use on a flat, stable surface; avoid direct airflow; use battery mode mainly during power cuts
